faceta;[<]■TVTUNER01[>]
facetb;[<]■ANTAENNA[>]
facetc;[<]■VCONV01[>]
facetd;[<]■CRT04[>]
sum; [<]N/A03[>]\[<]VIEW01[>]

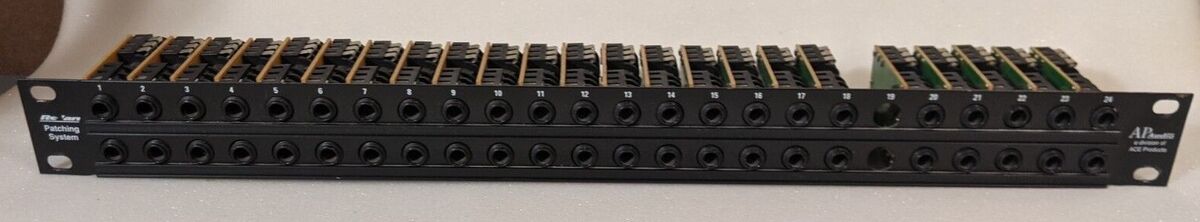

Furman RP-8(1)>>>>>>>> + Belkin SurgeMaster(2)>>>>(>) + Pyle PCO-800(3)>>>>>>>> + {(1)> + RCA TV Tuner + Coaxial extension 3FT + Antaenna} + 10FT RCA Cable (v) + 10FT RCA Cable (au) + (v)/(au)>Fostex Patchbay 3010 (Fosr14Tf / Fosr14Bf) + 2FT RCA Cable (v) + Fos08T + 10FT RCA Cable + {(1)> + Adaptor + barrel jack polarity inverter + Startech Video Game Jockey + VGA Gender changer} + 5FT VGA Cable + {(03)> + AC + Kramer VP-8x8a (VGAMATRIX01 IN08)} + {molded VGA cable + (2)> + 5FT AC Cable + Dell E770S}(/v) + (au)> 2FT RCA Cable + RCA-to-1/4M adapter + AP Patching System (AP19T) + 2FT 1/4TS Cable + Livewire ABY + 2FT 1/4TS Cable (a) + 2FT 1/4TS Cable (b) + (a)APr20Tf + 2FT 1/4TS Cable + (b)2FT 1/4TS Cable + APr21Tf (/a)(/b)2xTS-to-1xTRS Y Cable + Neu124Tb + 3/8-to-1/4M adapter + 6FT 3/8TRS Cable + {OL02B> + polarized + Bose Wave III}(/a)
decentralized
; Fos14T (v)>, Fos14B (au)>, Fos08T (v)<, AP19T (au)<, AP20T (a)> / AP21T (b)>, Neu124T <(a)+(b)
; ~9; 120VAC (150mAcalc) 18W + 9VDC 1A (9Wcalc) + ~7; 1.4A ~73WStatus: Working; used for viewing local TV.

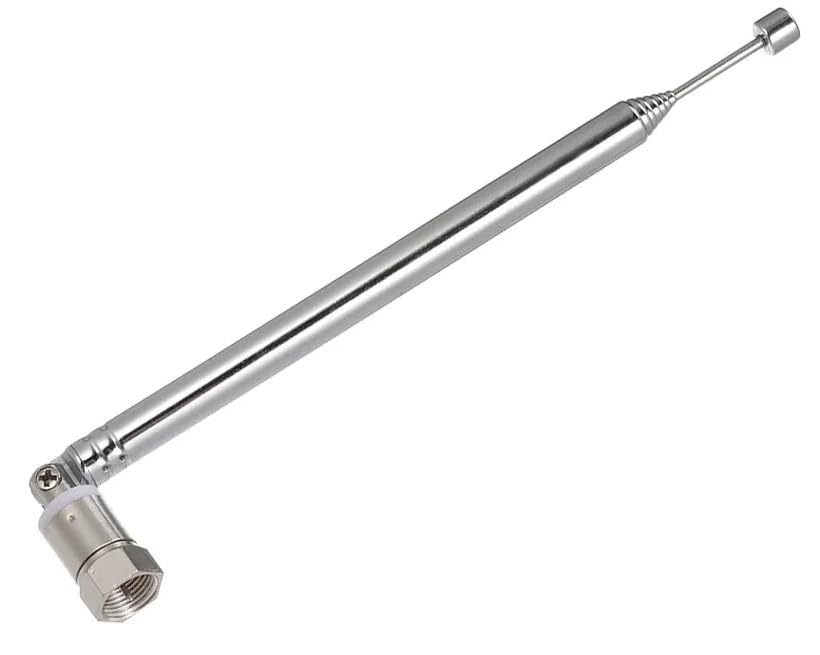

Breakdown of system; Component 'A' is the television tuner - it requires Component 'B', in this case an Antaenna, in order to see channels and tune to them.
Component 'A''s video and audio outputs are connected to the rear of a patchbay and are fed to Component 'C', also connected to the patchbay's rear plane, via patching
from the operator end (the front). 'C' has RCA audio and video input connections and VGA video output + 3/8 TRS audio out.
;Yes
;Yes
;RoomA decentralized
;Yes
;Yes
 |
 |
